AIM-54A Phoenix - Orginal File
Modèle 3D

$29.00

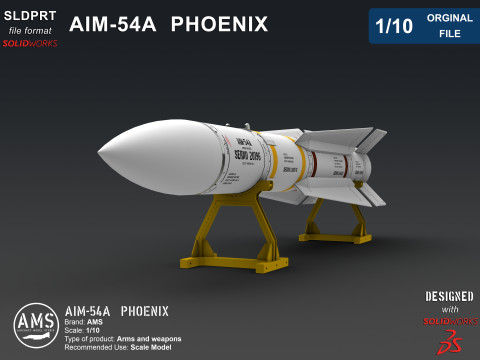

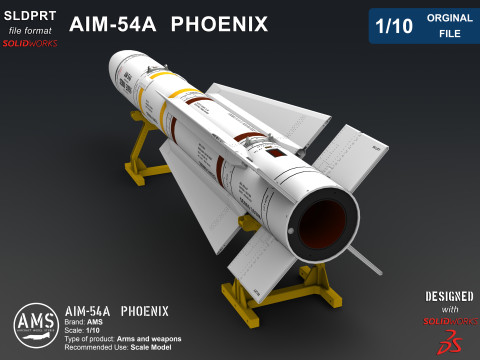

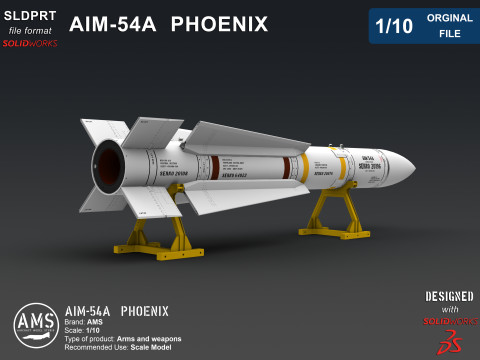

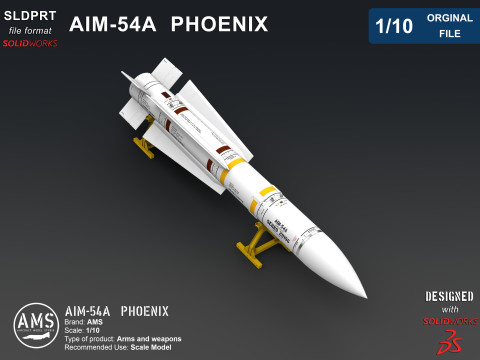

AIM-54A Phoenix - Orginal File Modèle 3D
$ 29.00
Supprimer! Signer ce produit
  • Formats disponibles:
    SolidWorks: sldprt 776.91 kb
    SolidWorks: sldprt 13.82 MB
    SolidWorks: sldprt 17.04 MB
    Portable Document: pdf 128.79 kb
    Portable Document: pdf 2.17 MB
    Image Textures: png 476.99 kb
  • Animé:
    No
  • Textures:
  • Installé:
    No
  • Matériaux:
  • Bas-poly:
    No
  • Collection:
    No
  • cartographie UVW:
    No
  • Plugins Utilisé:
    No
  • Prêt à imprimer:
    No
  • 3D Balayage:
    No
  • Contenu adulte:
    No
  • PBR:
    No
  • IA Formation:
    No
  • Géométrie:
    Polygonal
  • UVs non enveloppés:
    Unknown
  • Vus:
    62
  • Date:
  • ID de produit:
    583987
  • Rating:

Specification:
- Brand: AMS
- Scale: 1/10
- Type of product: Arms and weapons
- Recommended Use: Scale Model

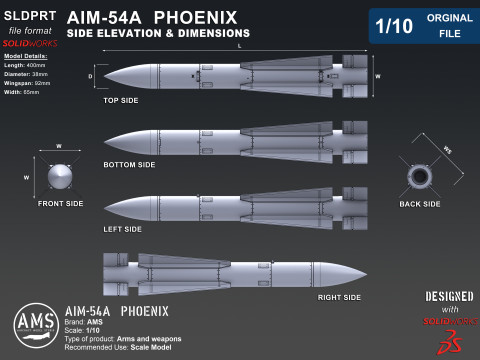

Missile Model Dimension:
- Length: 400mm
- Diameter: 38mm
- Wingspan: 92mm
- Width: 65mm

Note:
- Details are considered appropriate to the scale of the model.

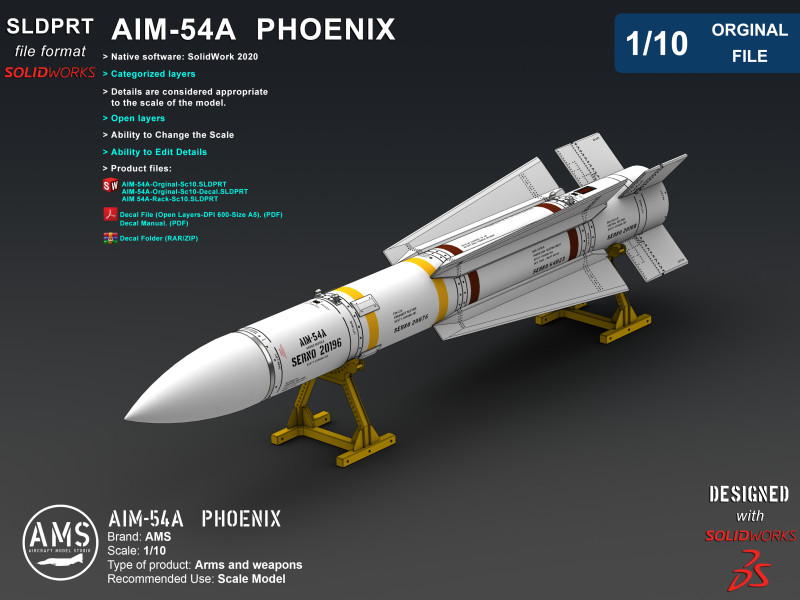

- Native software: SolidWork 2020

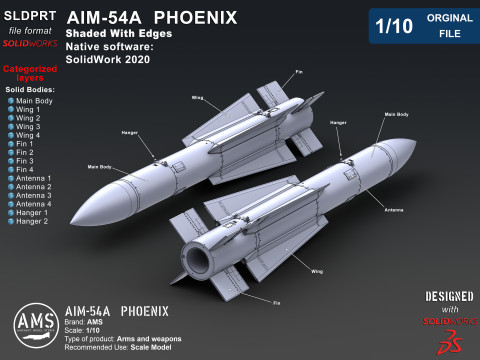

- Categorized layers
- Open layers
- Ability to Change the Scale
- Ability to Edit Details

Product files:
- AIM-54A-Orginal-Sc10.SLDPRT. (Solidwork)
- AIM-54A-Orginal-Sc10-Decal.SLDPRT. (Solidwork)

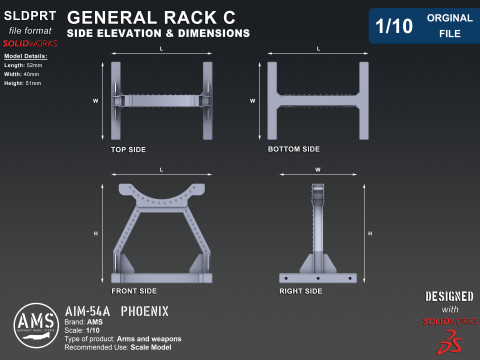

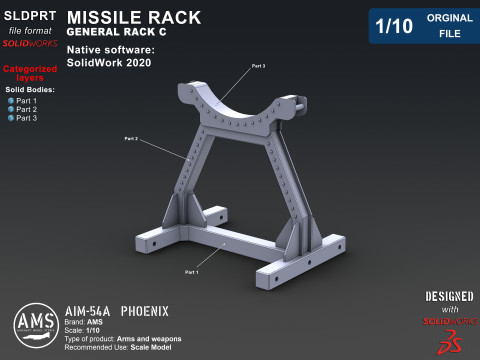

- AIM 54A-Rack-Sc10.SLDPRT. (Solidwork)
- Decal File (Open Layers-DPI 600-Size A5). (PDF)
- Decal Manual. (PDF)
- Decal Folder-Textures. (RAR/ZIP)

Description:
The AIM-54 Phoenix is an American radar-guided, long-range air-to-air missile (AAM), carried in clusters of up to six missiles on the Grumman F-14 Tomcat,its only operational launch platform.

The Phoenix was the United States' only long-range air-to-air missile. The combination of Phoenix missile and the Tomcat's AN/AWG-9 guidance radar meantthat it was the first aerial weapons system that could simultaneously engage multiple targets. Due to its active radar tracking, the brevity code "Fox Three"was used when firing the AIM-54.The act of the missile achieving a radar lock with its own radar is known under brevity as 'Going Pitbull'.

Both the missile and the aircraft were used by Iran and the United States Navy. In US service both are now retired, the AIM-54 Phoenix in 2004 and the F-14 in 2006.

They were replaced by the shorter-range AIM-120 AMRAAM, employed on the F/A-18 Hornet and F/A-18E/F Super Hornet—in its AIM-120D version,thelatest version of the AMRAAM just matches the Phoenix's maximum range.

The AIM-54 has been used in 62 air-to-air strikes, all by Iran during the eight-year Iran–Iraq War.Following the retirement of the F-14 by the U.S. Navy, theweapon's only current operator is the Islamic Republic of Iran Air Force.


3D printing settings

Note:
It is better to use the resin and settings recommended by your 3D printer company.

Prêt à imprimer: Non
Avez besoin de plus de formats?
Si vous avea besoin d’\autre format veuillez ouvrir un billet d’\assistance et demandez le. Nous pouvons convertir les modèles de 3D en: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Nous ne convertissons pas les scènes 3D et des formats tels que .step, .iges, .stp, .sldprt.!

Télécharger AIM-54A Phoenix - Orginal File Modèle 3D sldprt sldprt sldprt pdf pdf png De AMS.Object

phoenix aim54a tomcat f14 military scalemodel missile aircraft airforce topgun
Aucun commentaires sur ce produit.
