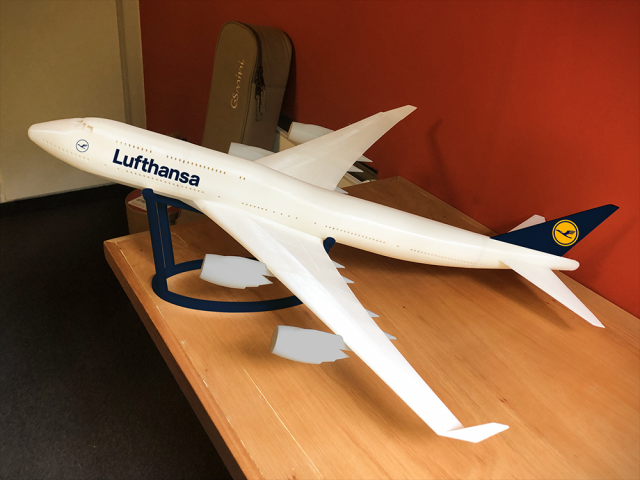

model representation of the legendary boeing 747 jumbo airplane
in this case, it is inspired by the lufthansa boeing 747-8 passenger plane, one of the largest passenger aircraft in the world.
due to its dimensions and shapes, it can attract people's attention wherever it is exhibited. (shoping, office, loby, airport, etc.)

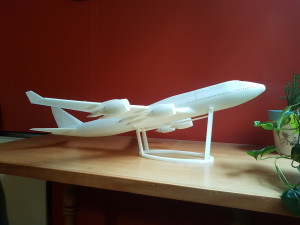

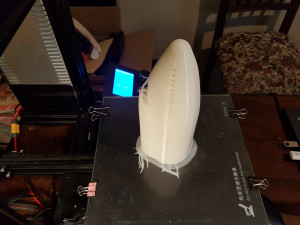

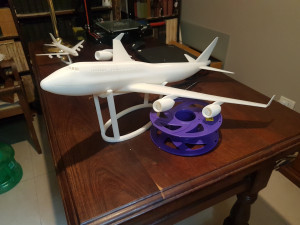

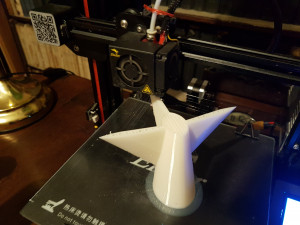

the model is designed in a 1 in 100 scale reaching a length of 76cm. and it was divided into parts with inserts to enable its correct assembly and printing on a small equipment. the photographed mockup was made on a creality ender 3 printer

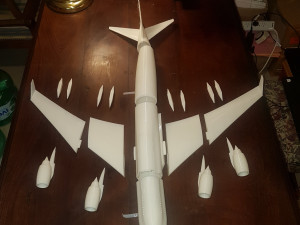

the model contains 12 files
fuselage: 1 cabin; 2 union of wings; 3rd last section; and 4 tail (4)
wings: 1 left wing base and 2 left wing tips (to print the right wing, cut it out in the printing program.) (2)
turbine: 1 left turbine (spacing is necessary to print the right turbines) (1)
fairings: 1 file (1)
base: the base is made in 4 parts with inserts, to avoid supports (4)
mouthpiece: 06
quality: 0.2
speed: 40
filler: 30% (the support should be added more)
support: only the section of the fuselage where the wings are born (touching the plate 80 °)
adhesion: edge
i leave another contact to communicate with any concerns
