source files mach lander 3d printable car transformer toy Modèles 3D en vedette

the archive contains:

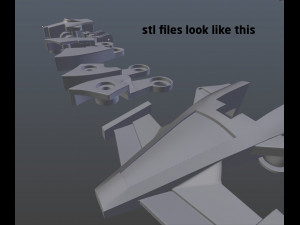

- a folder with the full set of print-ready parts which were redesigned to make the assembly easier

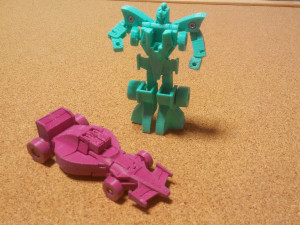

- a folder with the full set of print-ready parts which are fully compatible with the original toy
- .blend file with source lowpoly parts (modifiers are on but not applied, it will allow to modify models as you want)

assembly.pdf
https://drive.google.com/open?id=1nyaofwsf0xjrabj437lhoqgjey5yat7w

to assemble the toy you will need some additional things which you can see on the attached image (for more details please download assembly.pdf):
- 2 pins which contain small nails which are suitable to hold front wheels
- 2 metal spikes 2.2x29mm and 2.2x51mm (hard 2.2mm metal wire will be ok)
- an m3 screw (3x18mm) and a nut for it
- 7 pieces of 5.5mm screws
- 2 screws with a wide head, 5mm long

recommended printing settings:
- every part already has the correct position for printing (the main part will have a lot of support but it is necessary to print the face of the toy correctly and avoid any skewing, if the main part will be somehow skewed. then other parts will look misplaced after the assembly)
- it was tested in abs and pla
- layer height: 0.1
- infill density: 5%
- support: only touching buildplate
- support pattern: concentric
- support density: 20%
- buildplate adhesion type: raft
