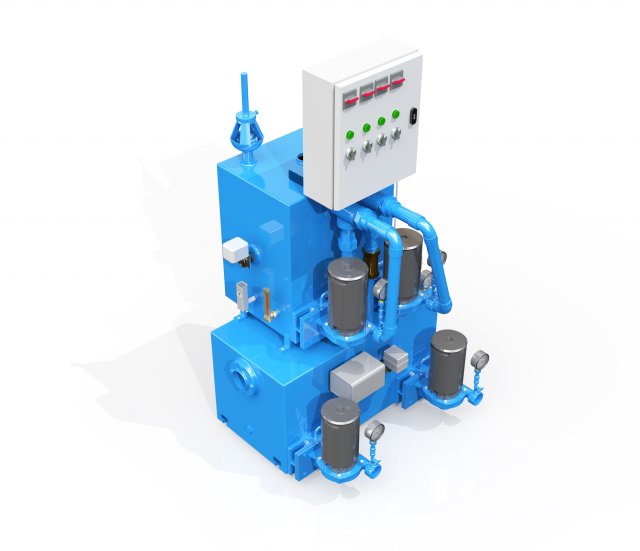

vacuum condensate unit Modèle 3D

vacuum units overview

designed to remove air and lift condensate in the condensate recovery portion of your steam heating system. receiver typically has two compartments—one to collect hot condensate and one to produce the vacuum. tank material can be close-grained cast iron or black steel. thicker black steel or 300 series stainless steel is option on some models for increased corrosion resistance. both simplex and duplex configurations are available with/without mounted, pre-wired control panels.

benefits

lower boiler operating costs by enabling boiler to run at a lower operating pressure and still get a pressure differential across traps in steam system.
achieve substantial energy savings by collecting the already heated condensate and returning it faster to the boiler thereby lowering the consumption of fuel needed to heat additional cold make-up water.
lower operating costs by reusing hot condensate already chemically treated thereby reducing the consumption of additional chemicals needed to treat fresh make-up water. Prêt à imprimer: Non
